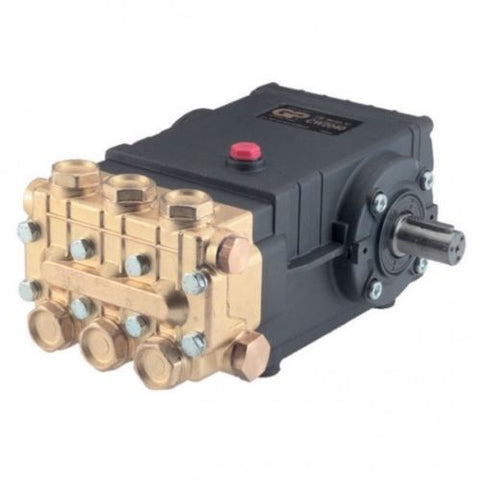

GENERAL PUMP MODEL T1621 5 GPM 2500 PSI SOLID SHAFT NICKLE PLATED HEAD
GENERAL PUMP MODEL T1621 5 GPM 2500 PSI SOLID SHAFT NICKLE PLATED HEADFEATURES:
- The preferred pump frame in the cleaning industry
- Forged brass manifold with an exdlusive lifetime warranty
- Large capacity, die cast, anodized aluminum oil bath crankcase
- Over sized connecting rods for maximum life
- Heavy duty tapered roller bearing
- Solid ceramic plungers with continuously lubricating packings
- Unitized stainless steel inlet and discharge valves
- Available in left handed "L" version
- Triplex Plunger Pump
- Maximum Volume: 5.0 GPM
- Maximum Discharge Pressure: 2500 PSI
- Maximum Inlet Pressure: 125 PSI
- Maximum Pump Speed: 1050 RPM
- Minimum Horsepower Requirements: 8.6 bhp (12.8 hp for gas engines)
- Bore: .866" (20mm)
- Stroke: .630" (16mm)
- Crankcase Capacity: 40.6 oz. Nondetergent SAE 30W oil
- Maximum Fluid Temperature: 165 degrees F.
- Inlet Port Thread: 1/2" FPT
- Discharge Port Thread: 3/8" FPT
- Shaft Diameter: .945" (24mm)
- Dimensions: 12.2" x 9.2" x6.9"
- Weight: 32 lb.
Lubrication: Fill the crankcase to dot on oil gauge window per specifications with Nondetergent SAE 30W oil.Change oil after 40 hour break in period, and every three (3) months or 500 hour intervals thereafter.
